3D Pyramid on a Kite-Shaped Base: Diagram Sketch

Grades 10-11

Question: ABCD is a quadrilateral, where AD=CD=8, angle ADC = 90 degrees. AB=BC, and angle ABC = 120 degrees. E is a point above the horizontal plane ABCD, where ED = EA = CD = 8, and angle EDC = 90 degrees. i want you to sketch the diagram

To visualize the given 3D geometry problem, we first establish a coordinate system centered at point

D

. In this configuration, the base

ABCD

lies on a horizontal plane (where

z = 0

), and point

E

is elevated above it.

Mathematical Breakdown of the Geometry

The Base Quadrilateral ( $ABCD$ ):
- Vertex $D$ : We place this at the origin $(0, 0, 0)$ .
- Right Triangle $\triangle ADC$ : Since $AD = CD = 8$ and $\angle ADC = 90^\circ$ , we place point $A$ along the x-axis at $(8, 0, 0)$ and point $C$ along the y-axis at $(0, 8, 0)$ .
- Isosceles Triangle $\triangle ABC$ : Point $B$ must be equidistant from $A$ and $C$ ( $AB = BC$ ) and satisfy the interior angle $\angle ABC = 120^\circ$ . By calculating its position relative to the midpoint of $AC$ , we find $B$ at approximately $(6.31, 6.31, 0)$ .
The Elevated Point ( $E$ ):
- Height and Position: Point $E$ is positioned such that $ED = EA = 8$ . This places $E$ directly above the midpoint of segment $AD$ in the x-direction.
- Right Angle $\angle EDC$ : Since $\angle EDC = 90^\circ$ , the segment $ED$ must be perpendicular to $DC$ . Because $DC$ lies along the y-axis, point $E$ must have a y-coordinate of $0$ .
- Coordinates: Using the distance formula for $ED = 8$ , we find that $E$ is located at $(4, 0, 4\sqrt{3})$ , which is approximately $(4, 0, 6.93)$ .

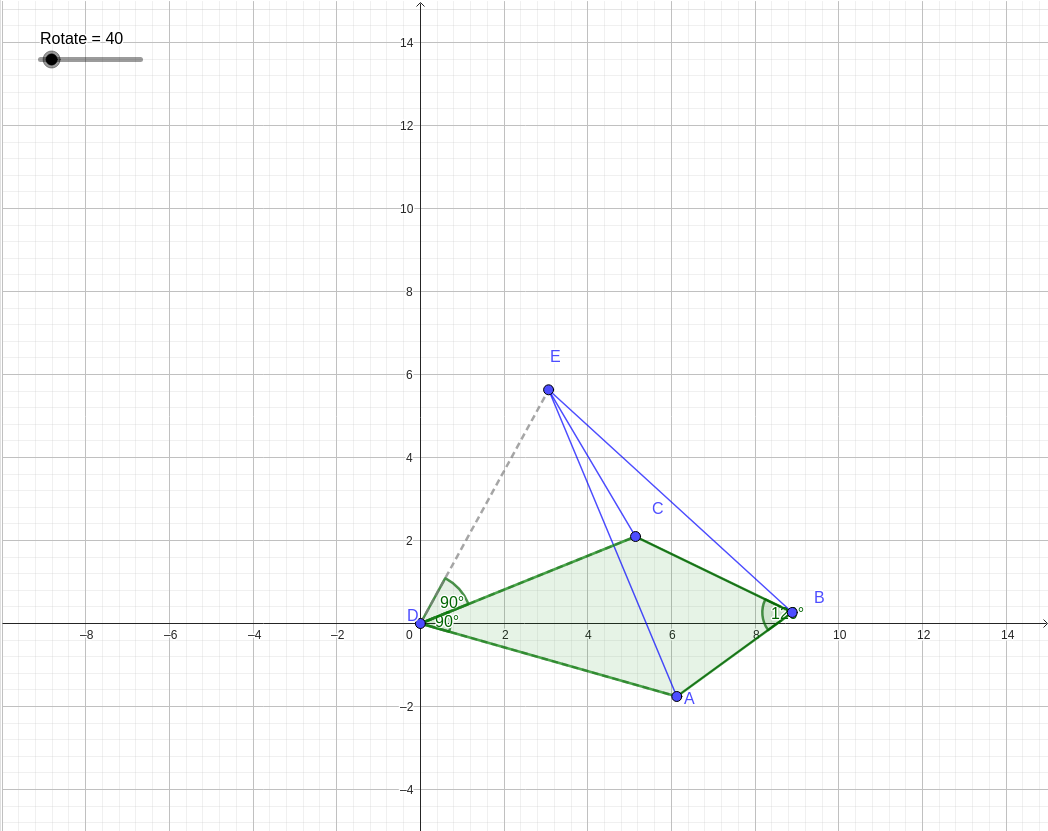

Visualization Features:
- Base Plane (Green): The region $ABCD$ is shaded to represent the horizontal ground plane.
- Right Angles: Indicated at vertex $D$ both in the base ( $\angle ADC$ ) and in the vertical plane ( $\angle EDC$ ).
- Obtuse Angle: The $120^\circ$ angle at vertex $B$ highlights the non-rectangular shape of the base.
- Hidden Edges: Lines connected to point $D$ (the back corner) are dashed to represent perspective.

You can use the rotation slider in the diagram to view the 3D structure from different angles.
