Sketching Angles from a Common Vertex

Grades 8-9

Interactive Sketching Angles from a Common Vertex graph — click to explore — Click the graph to explore it interactively →

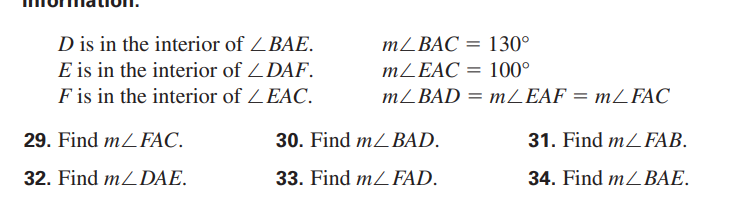

Question: can u draw the sketch for this problem

To sketch this geometry problem, we first determine the specific layout of the rays based on the given angle measurements and interior relationships. All angles share a common vertex, which we label as Point

A

Mathematical Analysis

Finding $\angle FAC$ and $\angle EAF$ : We are given that $m\angle EAC = 100^\circ$ and that point $F$ is in the interior of this angle. Since $m\angle EAF = m\angle FAC$ , ray $AF$ acts as an angle bisector.

$\text{Thus, } m\angle FAC = m\angle EAF = \frac{100^\circ}{2} = 50^\circ$
Finding $\angle BAD$ : The problem states that $m\angle BAD = m\angle EAF$ . From our previous step, we know $m\angle EAF = 50^\circ$ .

$\text{Thus, } m\angle BAD = 50^\circ$
Determining the Ray Configuration: We are given $m\angle BAC = 130^\circ$ . Since $m\angle EAC = 100^\circ$ , for the total angle $BAC$ to be $130^\circ$ while respecting the interior constraints, ray $AB$ and ray $AC$ must be on opposite sides of ray $AE$ .
- Let ray $AC$ be at $0^\circ$ .
- Ray $AF$ is at $50^\circ$ .
- Ray $AE$ is at $100^\circ$ .
- Ray $AB$ is at $230^\circ$ (which is $130^\circ$ clockwise from $AC$ , satisfying $m\angle BAC = 130^\circ$ ).
Finding $\angle BAE$ and $\angle DAE$ : The measure of $\angle BAE$ is the angle between ray $AB$ ( $230^\circ$ ) and ray $AE$ ( $100^\circ$ ).

$m\angle BAE = 230^\circ - 100^\circ = 130^\circ$

Since $D$ is in the interior of $\angle BAE$ and $m\angle BAD = 50^\circ$ :

$m\angle DAE = m\angle BAE - m\angle BAD = 130^\circ - 50^\circ = 80^\circ$

This places ray $AD$ at $180^\circ$ ( $100^\circ + 80^\circ$ ).

Summary of Measures

29. $m\angle FAC = 50^\circ$
30. $m\angle BAD = 50^\circ$
31. $m\angle FAB = 180^\circ$ (The distance between $50^\circ$ and $230^\circ$ )
32. $m\angle DAE = 80^\circ$
33. $m\angle FAD = 130^\circ$ (The distance between $50^\circ$ and $180^\circ$ )
34. $m\angle BAE = 130^\circ$

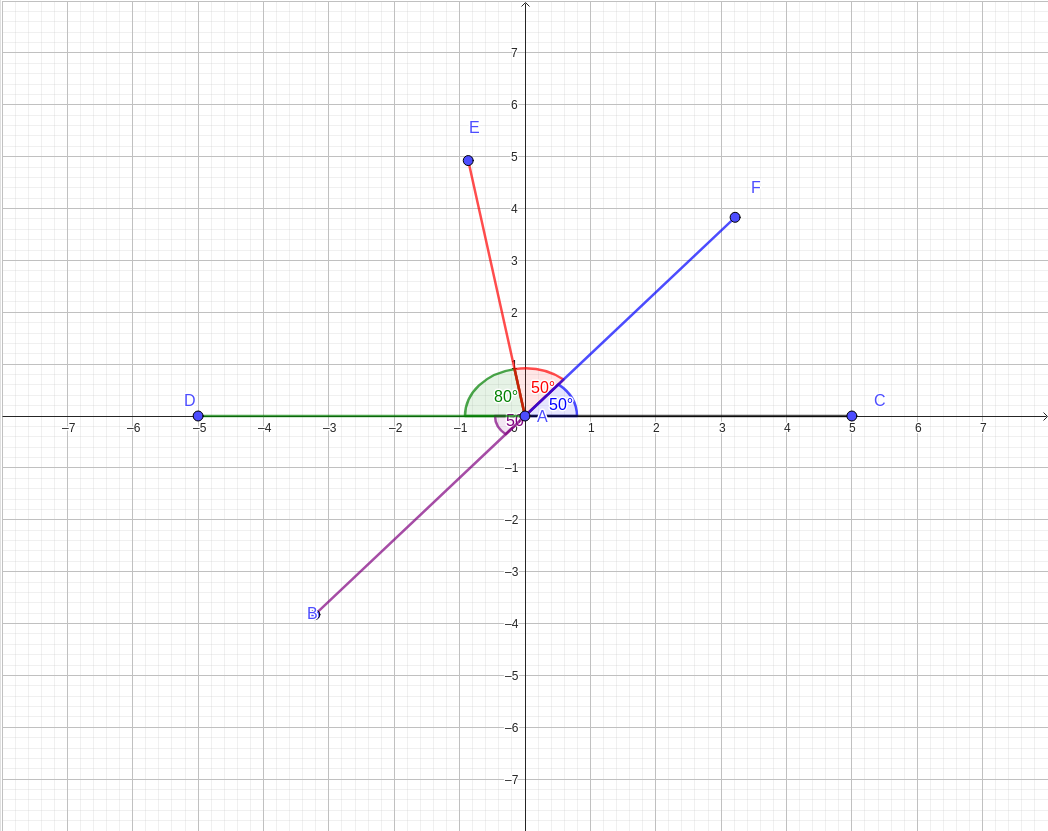

In the diagram below, the common vertex is A. Ray AC lies on the positive x-axis. The colors differentiate the various rays and angles defined in the problem.
